川消消防控制柜上的指示燈含義
來源：http://m.xintli.net/ 日期：2023-04-28

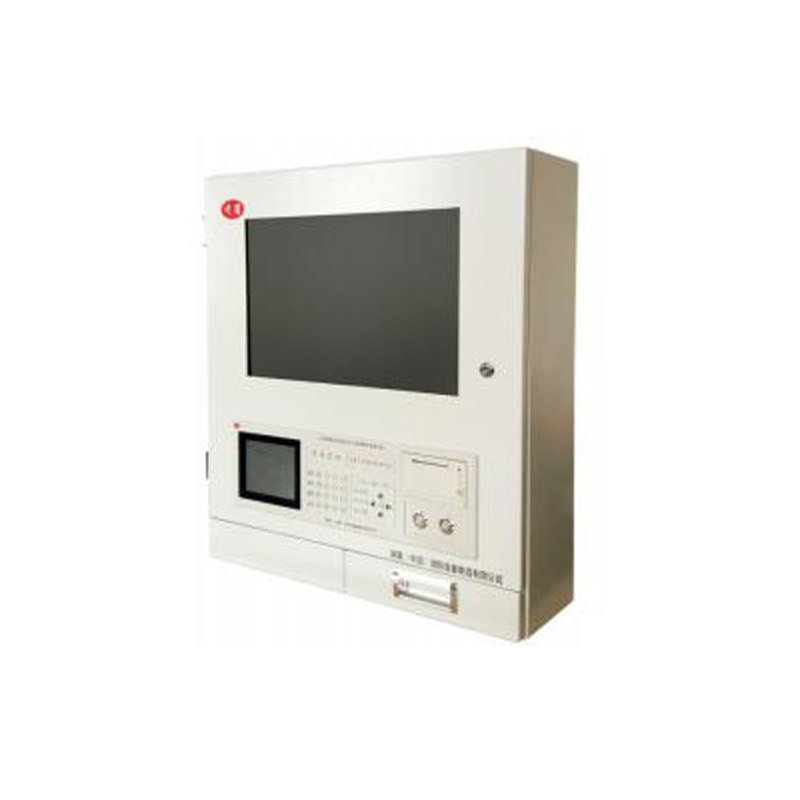

很多消防控制室值班人員都對消防控制柜感到害怕，一來不會操作：怕；二來擔心操作損壞：怕，今天就來
川消小編一起來簡單地學習下消防控制柜上的指示燈含義事項吧。
Many on duty personnel in the fire control room are afraid of the fire control cabinet, as they cannot operate it; Secondly, worry about operational damage: I'm afraid. Today, let's learn the meaning of the indicator lights on the fire control cabinet together.
監管燈：紅色，此燈亮表示控制器檢測到了外部設備的監管信號，系統處于監管狀態。復位控制器后此燈熄滅。
Supervision light: Red, this light indicates that the controller has detected a supervision signal from external devices and the system is in a supervision state. After resetting the controller, this light turns off.
屏蔽燈：黃色，當外部設備（探測器、模塊或火災顯示盤、本機警報器）發生故障時，可將它屏蔽掉，待修理或更換后，再利用取消屏蔽功能將設備恢復。有屏蔽設備存在時此燈亮。
Shield light: Yellow. When external devices (detectors, modules, fire display panels, local alarms) malfunction, they can be shielded. After repair or replacement, the device can be restored by using the unshielding function. This light comes on when there is a shielding device present.
警報器啟動燈：紅色，有警報器處于啟動狀態時，此燈點亮，當停動警報器或警報器消音后，此燈熄滅。
Alarm start light: Red, when an alarm is in the start state, this light will light up. When the alarm is stopped or silenced, this light will go out.
火警傳輸動作/反饋：紅色，當系統中有火警信息傳輸時，該燈閃亮，當接收到火警傳輸設備的反饋信號后該燈常亮；有新的火警信息傳輸時，該燈再次閃亮。該燈可反映信息傳輸的新狀態。
Fire alarm transmission action/feedback: red, when there is a fire alarm information transmission in the system, this light will flash, and it will remain on when receiving a feedback signal from the fire alarm transmission equipment; When a new fire alarm message is transmitted, the light flashes again. This light can reflect the new state of information transmission.
工作燈：綠色，當控制器工作時，此燈點亮。
Work light: Green, illuminated when the controller is working.
主電工作燈：綠色，當控制器由AC220V電源供電工作時，此燈點亮。
Main power work light: Green, this light will light up when the controller is powered by AC220V power.
備電工作燈：綠色，當控制器由備電供電工作時，此燈點亮。
Backup power work light: Green, this light will light up when the controller is powered by backup power.
調試狀態燈：綠色，當控制器處于調試狀態時，此燈點亮。
Debugging status light: Green, this light will light up when the controller is in debugging state.
自檢燈：黃色，當系統中有設備處于自檢狀態時，此燈點亮。
Self test light: Yellow, lit when a device in the system is in self test state.
警報器消音燈：黃色，當控制器發出警報音響時，按“警報器消音/啟動”鍵該燈點亮，警報器終止發出警報。如再次按下“警報器消音/啟動”鍵或有新的警報發生時，警報器消音指示燈熄滅，同時警報器再次發出警報聲。
Alarm Silencer Light: Yellow. When the controller emits an alarm sound, press the "Alarm Silencer/Start" button to turn on the light, and the alarm will terminate and sound the alarm. If the "Alarm Silence/Start" button is pressed again or a new alarm occurs, the alarm silence indicator light will go out, and the alarm will sound again.
啟動燈：紅色，當控制器發出啟動命令后，該燈常亮；當發出啟動命令后在10s內未收到要求的反饋信號，該燈閃亮；復位控制器后，此燈熄滅。
Start light: red, which remains on when the controller issues a start command; When the required feedback signal is not received within 10 seconds after issuing the start command, the light flashes; After resetting the controller, this light goes out.
延時燈：紅色，此燈亮表示系統中存在延時啟動的設備，具體信息見液晶顯示。延時結束或復位控制器后，此燈熄滅。
Delay light: Red, this light indicates the presence of delayed startup devices in the system. Please refer to the LCD display for specific information. After the delay ends or the controller is reset, this light will turn off.
反饋燈：紅色，此燈亮表示控制器接收到外接設備的反饋信息，具體信息見液晶顯示。復位控制器后，此燈熄滅。
Feedback light: Red, this light indicates that the controller has received feedback information from external devices. Please refer to the LCD display for specific information. After resetting the controller, this light goes out.
自動允許燈：綠色，此燈常亮表示系統處于全部允許狀態；此燈閃亮表示系統處于部分允許狀態；此燈熄滅表示系統處于自動禁止狀態。
Automatic permission light: Green, this light is constantly on, indicating that the system is in a fully allowed state; This light flashing indicates that the system is in a partially allowed state; If this light goes off, it indicates that the system is in an automatic inhibit state.
噴灑允許燈：綠色，此燈亮表示控制器處于噴灑允許狀態，氣體滅火設備可以被手動啟動或自動聯動；此燈滅表示控制器處于噴灑禁止狀態，氣體滅火設備不能被手動啟動或自動聯動。
Spraying permission light: green, this light indicates that the controller is in the spraying permission state, and the gas fire extinguishing equipment can be manually started or automatically linked; When this light is off, it indicates that the controller is in a spray prohibited state, and the gas fire extinguishing equipment cannot be manually started or automatically linked.
噴灑請求燈：紅色，當系統中有氣體滅火設備處于延時啟動階段時，此燈點亮，當控制器向氣體滅火設備發出啟動命令后，此燈熄滅。
Spray request light: Red. When there is a gas fire extinguishing device in the system in the delayed start stage, this light will light up. When the controller sends a start command to the gas fire extinguishing device, this light will go out.
噴灑啟動燈：紅色，此燈亮表示控制器已向氣體滅火設備發出啟動命令。
Spray start light: Red, this light indicates that the controller has issued a start command to the gas fire extinguishing equipment.
氣體噴灑燈：紅色，此燈亮表示控制器接收到氣體滅火設備反饋信號。
Gas spray light: Red, this light indicates that the controller has received a feedback signal from the gas fire extinguishing equipment.
故障燈：黃色，此燈亮表示控制器檢測到外部設備（探測器、模塊或火災顯示盤）有故障，或控制器本身出現故障，具體信息見液晶顯示。故障排除后，按“復位”鍵此燈熄滅。
Fault light: Yellow, this light indicates that the controller has detected a fault with external devices (detectors, modules, or fire display panels), or the controller itself has a fault. Please refer to the LCD display for specific information. After troubleshooting, press the "Reset" button to turn off the light.
系統故障燈：黃色，當系統存儲器發生故障或系統程序無法正常運行時，此燈點亮，以提示用戶立即對控制器進行修復。
System fault light: Yellow. When there is a fault in the system memory or the system program cannot run normally, this light will light up to prompt the user to immediately repair the controller.
聲光警報器故障燈：黃色，當系統中有聲光警報器處于故障狀態時，此燈點亮。
Audible and visual alarm fault light: yellow, when there is an audible and visual alarm in the system in a fault state, this light will light up.
聲光警報器屏蔽燈：黃色，當系統中存在被屏蔽的聲光警報器時，此燈點亮。
Sound and light alarm shielding light: yellow, this light will light up when there is a shielded sound and light alarm in the system.
火警傳輸故障/屏蔽燈：黃色，當系統中的火警傳輸設備發生故障時，該燈閃亮，若火警傳輸設備被屏蔽，則該燈保持常亮。
Fire alarm transmission fault/shielding light: Yellow, flashing when the fire alarm transmission equipment in the system malfunctions. If the fire alarm transmission equipment is shielded, the light remains on.
That's all for the explanation of the meaning of the indicator lights on the fire control cabinet. We hope to provide you with good help. For more information, please come to our website http://m.xintli.net Consult!
