川消自泄式消防水炮的布線要求要遵守
來源：http://m.xintli.net/ 日期：2022-05-28

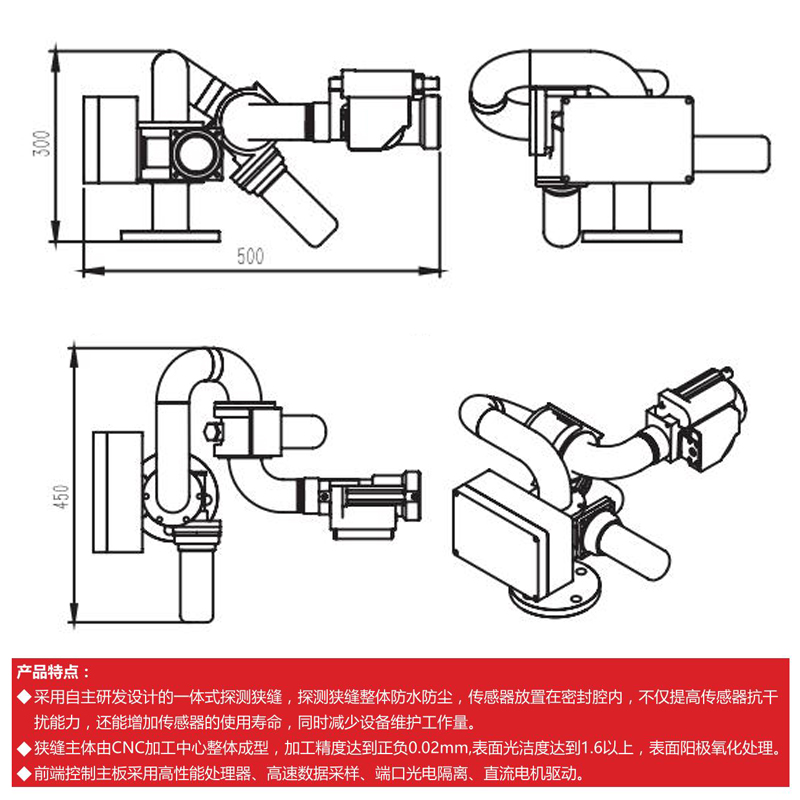

自泄式消防水炮能夠使操作人員可以遠距離直接控制火炮的射角，可以很好地保護人身。噴水柱時，可撲滅固體火；噴灑水霧時，可用于火場降溫和火災救援。本產品是適用于重型消防車、消防船舶、工礦企業、倉庫、油田、儲罐等的固定式滅火設備。那么自泄式消防水炮的布線要求是怎樣的？
The self discharging fire water monitor enables the operator to directly control the firing angle of the gun from a long distance, which can well protect personal safety. Solid fire can be extinguished when spraying water column; When spraying water mist, it can be used for fire site cooling and fire rescue. This product is a fixed fire extinguishing equipment suitable for heavy fire engines, fire ships, industrial and mining enterprises, warehouses, oil fields, storage tanks, etc. What are the wiring requirements for the self discharging fire water monitor?
1、控制系統是一塊電路板。
1. The control system is a circuit board.
2、接線方式控制箱與控制箱串聯，接頭應盡量減少，不要拉下蒙皮。
2. Wiring mode the control box is connected in series with the control box, and the connectors shall be minimized without pulling down the skin.
3、通訊線布線距離RS485通訊線≤800m：使用耐火屏蔽雙絞線2.5平方RS485通訊線≥800m：建議使用光纖傳輸（鋪設光纖時需要購買一對CAN到光纖轉換器，光纖應為多芯單模鎧裝光纖，連接光纖時必須選擇熔接光纖。）
3. The distance between the communication line and the RS485 communication line shall be ≤ 800m: the fire-resistant shielded twisted pair 2.5 square RS485 communication line shall be used ≥ 800m: it is recommended to use optical fiber transmission (a pair of can to optical fiber converters shall be purchased when laying the optical fiber, the optical fiber shall be multi-core single-mode armored optical fiber, and the fusion optical fiber must be selected when connecting the optical fiber.)
4、通訊線接線注意事項RS485通訊口不要強電。通訊線的屏蔽層必須接地。通訊線路應與強電分開布管，分開走線。
4. Precautions for communication line wiring: RS485 communication port shall not have strong current. The shielding layer of the communication line must be grounded. The communication line shall be laid separately from the strong current.
5、控制系統為繼電器。
5. The control system is relay.
6、接線方式控制箱與主機分開連接，控制箱與控制箱內的控制線不能串聯。
6. Wiring mode the control box and the host are connected separately, and the control lines in the control box and the control box cannot be connected in series.
7、控制線接線注意事項盡量減少接頭數量，并按接線圖接線。
7. Precautions for control line wiring: reduce the number of connectors as far as possible and connect according to the wiring diagram.
消防炮安裝前應對系統管網進行壓力試驗，試驗合格后進行沖洗；安裝火炮下法蘭，調整法蘭端面與水平儀水平；槍體采用4個配套螺栓固定，法蘭連接采用橡膠圈密封；接通電源，調整線束長度，保證滅火裝置在轉動范圍內不受限制，并有輕微余量；每臺消防炮安裝完成并接線無誤后，可用現場手動控制箱進行通電測試，通過現場手動控制箱遙控后拆除腳手架。
Before the installation of the fire monitor, the system pipe network shall be pressure tested and flushed after passing the test; Install the lower flange of the gun, and adjust the flange end face to be level with the level gauge; The gun body is fixed with 4 matching bolts, and the flange connection is sealed with rubber rings; Connect the power supply and adjust the length of the harness to ensure that the fire extinguishing device is not restricted within the rotation range and has a slight margin; After the installation of each fire monitor is completed and the wiring is correct, the on-site manual control box can be used for power on test, and the scaffold can be removed after remote control through the on-site manual control box.
此外
川消提醒大家，定期的檢查事項很重要，自泄式消防水炮在使用前應先檢查控制器電源電路和無線控制設備，保證電流電壓在正常的范圍內，遙控器內電池也正常。定期保持消防炮體整潔，使用泡沫滅火后應用清水沖洗干凈。定期在轉動部位加注潤滑油，保證轉動靈活。若發現噴射壓力過高或射程較近時，應檢查噴頭處是否有堵塞物，若有應及時。
In addition, Chuanxiao reminded everyone that regular inspection is very important. Before using the self discharging fire monitor, check the controller power circuit and wireless control equipment to ensure that the current and voltage are within the normal range, and the battery in the remote controller is also normal. Regularly keep the fire monitor clean and tidy, and wash it with clean water after extinguishing with foam. Regularly add lubricating oil to the rotating parts to ensure flexible rotation. If it is found that the injection pressure is too high or the range is close, check whether there is any blockage at the nozzle, and if so, remove it in time.
