川消分區控制閥安裝應用及控制接線
來源：http://m.xintli.net/ 日期：2022-06-01

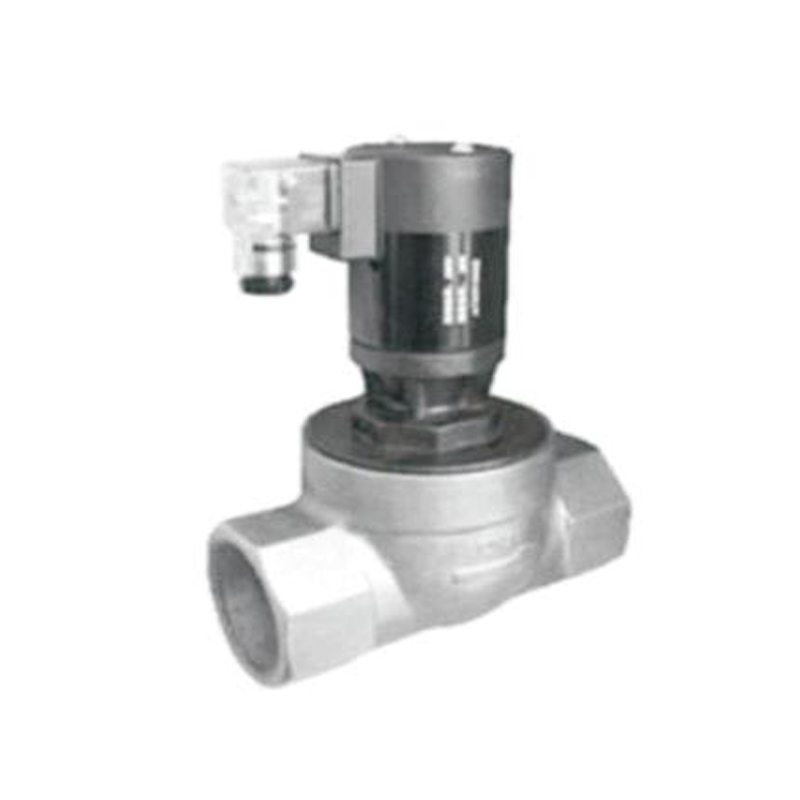

高壓細水霧分區控制閥的主要作用是在接收到火災報警控制器的控制信號后，打開相應分區的電動截止閥，將細水霧釋放到保護區進行滅火。.當噴頭正常噴出細水霧時，壓力開關向火災報警控制器發出反饋信號。為了更好地使用它，我們應該了解相關事項，例如高壓細水霧分區控制閥的安裝和應用以及控制接線。
The main function of the high-pressure water mist zone control valve is to open the electric stop valve of the corresponding zone after receiving the control signal from the fire alarm controller to release the water mist to the protection zone for fire extinguishing When the sprinkler sprays water mist normally, the pressure switch sends a feedback signal to the fire alarm controller. In order to better use it, we should understand relevant matters, such as the installation and application of high-pressure water mist partition control valve and control wiring.
高壓細水霧分區控制閥組的應用
Application of high pressure water mist zone control valve group
根據應用方法的不同，開區調節閥組分為兩種應用方法：
According to different application methods, the open zone regulating valve assembly is divided into two application methods:
開放系統——由開放區域控制閥和開放噴嘴組成
Open system - consists of open area control valves and open nozzles
預作用系統——由開放區域控制閥和封閉噴嘴組成
Pre action system - consists of open area control valves and closed nozzles
隔斷調節閥的過流部件和箱體均為奧氏體不銹鋼。開式閥組和閉式閥組外觀相同，但內部結構和功能不同。
The flow passage parts and box body of the isolating control valve are made of austenitic stainless steel. The appearance of open valve group and closed valve group is the same, but the internal structure and function are different.
高壓細水霧分區控制閥的安裝
Installation of high pressure water mist partition control valve
1、高壓細水霧分區調節閥配有固定螺母和焊管。管子和被焊管用氬弧焊焊接后，通過活接頭連接方式與閥組的進出口連接。
1. The high-pressure water mist partition regulating valve is equipped with fixing nuts and welded pipes. After the pipe and the welded pipe are welded by argon arc welding, they are connected with the inlet and outlet of the valve group through the union connection.
2、高壓細水霧隔斷調節閥組應安裝在保護區附近和保護區外，以方便發生火災時的應急操作、檢查和維護。
2. The high-pressure water mist isolation control valve group shall be installed near and outside the protection area to facilitate the emergency operation, inspection and maintenance in case of fire.
3、高壓細水霧隔斷調節閥的安裝高度應為1.2-1.6m。隔斷調節閥組的安裝分為明裝和暗裝。安裝時，裝修前一定要檢查接縫是否密封好。
3. The installation height of high-pressure water mist isolation regulating valve shall be 1.2-1.6m. The installation of the isolation control valve group is divided into open installation and concealed installation. During installation, check whether the joint is well sealed before decoration.
Control mode and wiring of high pressure water mist zone control valve
高壓細水霧分區調節閥有自動、手動和機械應急控制方式，但嚴禁在通電情況下以機械應急方式強行打開閥門，否則可能造成設備故障或損壞.
The high-pressure water mist partition regulating valve has automatic, manual and mechanical emergency control modes, but it is strictly prohibited to forcibly open the valve in mechanical emergency mode when the power is on, otherwise it may cause equipment failure or damage
一個。自動控制：需要連接一個適用于火災報警控制器的控制模塊來控制閥組的開啟動作，并將信號反饋給火災報警控制器。
One. Automatic control: a control module applicable to the fire alarm controller shall be connected to control the opening action of the valve group and feed back the signal to the fire alarm controller.
灣。手動控制：火災報警控制器發生故障時使用。分區控制閥組直接啟動泵組，噴出高壓細水霧滅火。
Bay. Manual control: used when the fire alarm controller fails. The divisional control valve group directly starts the pump group and sprays high-pressure water mist to extinguish the fire.
C。機械應急：當電動截止閥出現故障時，手動打開電動截止閥。
C。 Mechanical emergency: when the electric stop valve fails, manually open the electric stop valve.
川消分區控制閥安裝應用及控制接線的相關內容講解完畢，您可以關注我們川消
m.xintli.net網站，了解或者選購更多相關設備。
After explaining the installation, application and control wiring of Chuanxiao district control valve, you can follow us at www.hcseaworld.com Com website to learn about or buy more related devices.
